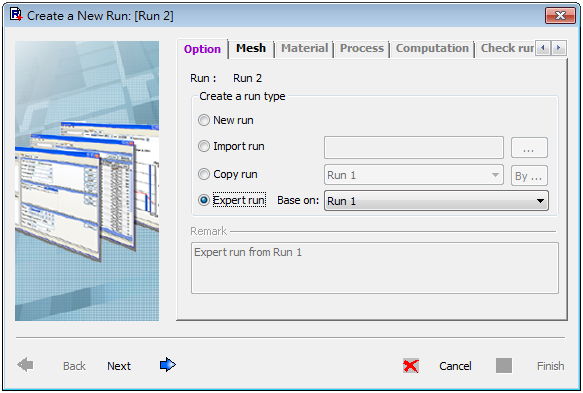

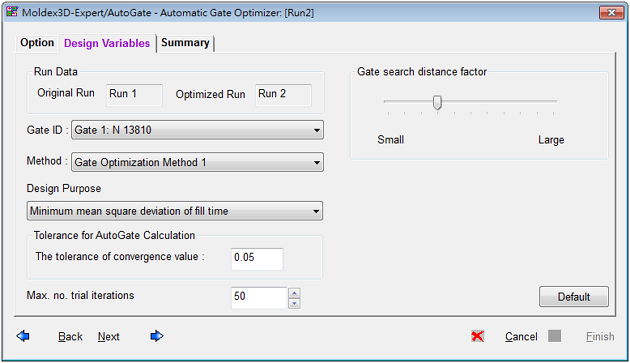

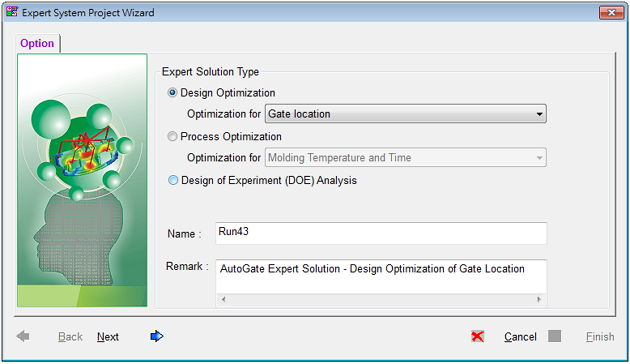

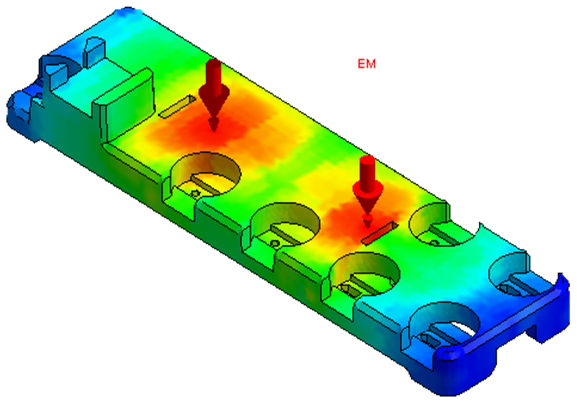

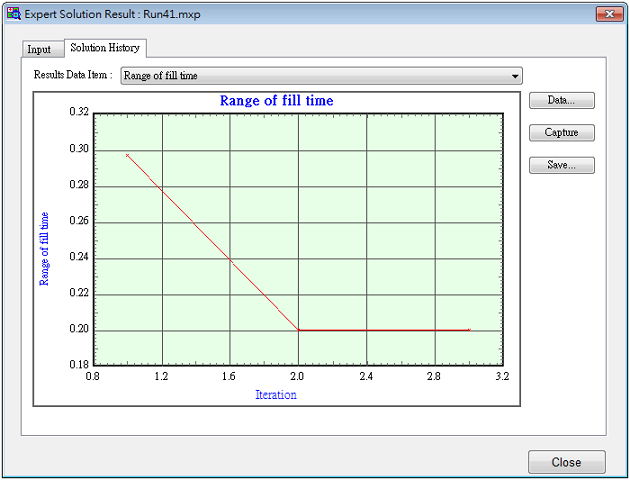

Moldex3D Expert module has been extensively used to assist designers in evaluating the proper settings for optimizing processing conditions such as melt temperature, mold temperature, cooling time, flow rate profile, packaging pressure profile. Now, Moldex3D Expert module provides not only Process Optimization and Design of Experiment (DOE) Analysis, but also Design Optimization.  Design Optimization of Moldex3D Expert module can achieve optimized runner sizes and gate locations; optimized single/multiple gate(s) location(s) can be automatically achieved with eDesign mesh (True 3D mesh). This powerful function helps users find minimum flow length for each gate, and then achieve balanced flow. The following tips are essential for optimizing gate locations using Moldex3D Expert Module. STEP 1. Create an Expert run STEP 2. Select Optimization for Gate location in Design Optimization STEP 3. Set Design Variables. The Method, Gate Optimization Method 1, provides efficient iterative calculation to find out the most uniform filling time for specificed gate(s) location(s). The concept is simply given in the Design Purpose, Minimum mean square deviation of fill time; by finding the most uniform filling time from calculation nodes of part model the minimum mean square deviation of fill time is obtained and then the optimized gate(s) location(s) is determined. STEP 4. Choose “AutoGate Analysis-AG†as analysis type and then obtain results of optimized gate location. This figure shows the optimization result of filling time, which reflects the minimum mean square deviation of fill time after iterative calculation. In this figure, the optimized gate locations are identified after the optimization calculation for the original random gate locations. Irregular Blow Molding,Injection Special Shaped Parts,Plastic Injection Special Shaped Parts,Plastic Irregular Tube Dandong Jinggong Heat Preservation Appliance Factory , https://www.jgplastic.com
